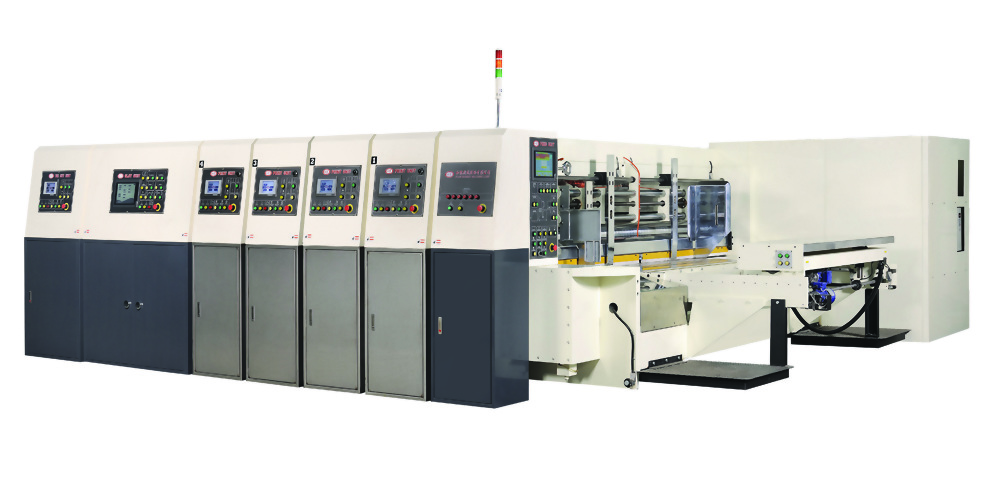

Model : SFSCT-CNC Series

Q'ty :

Add To Inquiry

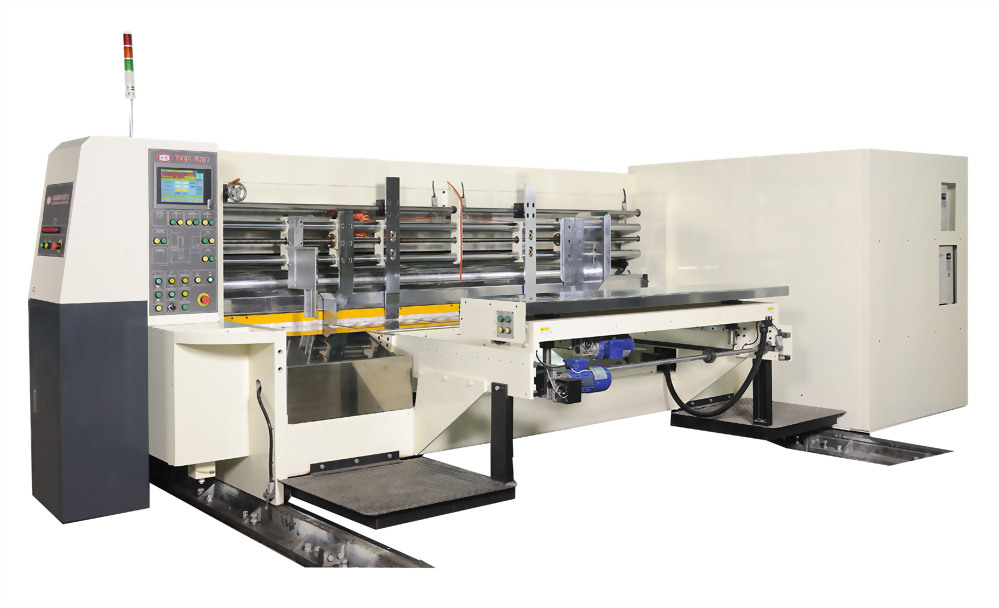

    Lead edge feeder unit

  • YASKAWA server motor control system to enable, high speed and accuracy during
          feeding of cardboard.
  • Automatic Slip Compensate system is when machine on difference speed can to
         accurate position of feeding .
  • Effective in getting together the machine and electricity and effective to handle position、
         speed and acceleration.
  • With a pneumatic skip feed device in order to produce larger size boxes.
  • The cardboard-supporter、side guides and cardboard thickness can automatically
         move to the preset position by HMI system.


     Dust Collection Unit (Optional) :

  •     Electric brush system can effective in getting rid of dust and paper powder on the cardboard.
  • Electrostatic precipitator system .

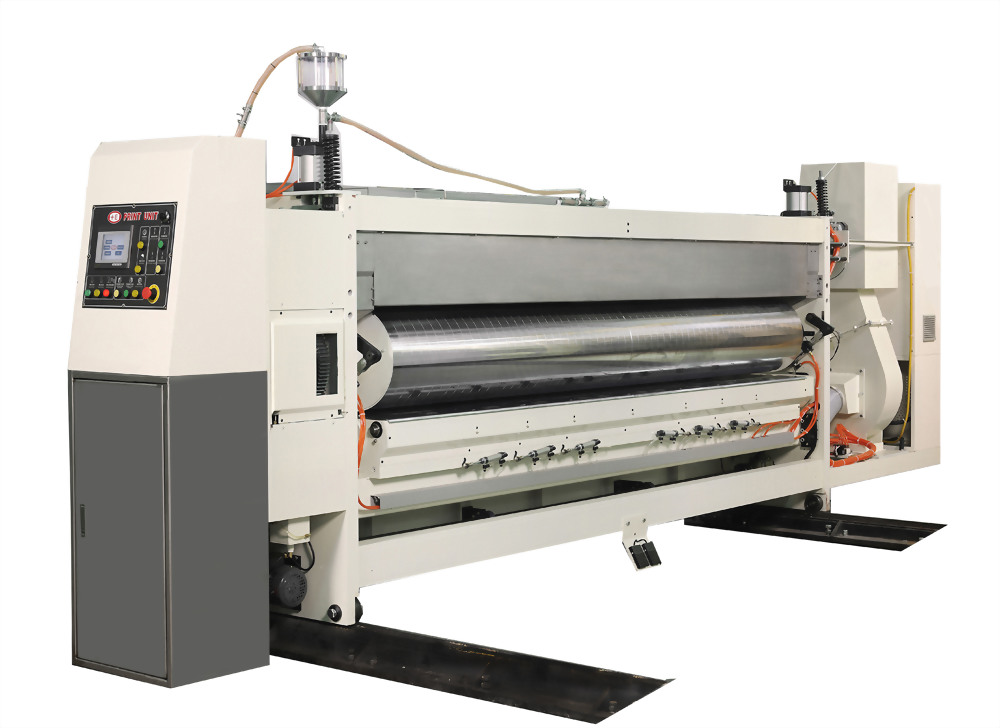

     Printer Unit :

  • Top printer.
  •  Laser engraved ceramic anilox rolls.
  •  Made of A-class seamless pipe coated with a special wear-resistant and oil-proof black NBR .
  •  Integrated pneumatic ink pump、filter and ink cycling system for high-precision printing, also
         for protecting the anilox roll and the rubber roll.
  •  Printer unit is complete with an auto positioning and electric adjustment, this function would
         allow operator’s to position the printing drum back
    to printing position.
  •  All of the roller with dynamically balanced.

  Optional :

  •     Vacuum transfer system is equip with durable tungsten carbide guide wheels.
         This system greatly improve the printing accuracy and would
    overcome warp boards issues.
  •     Doctor blade “ Chamber” type would be suggested for high quality printing,
         hence this would also be a cost saving on the ink material.

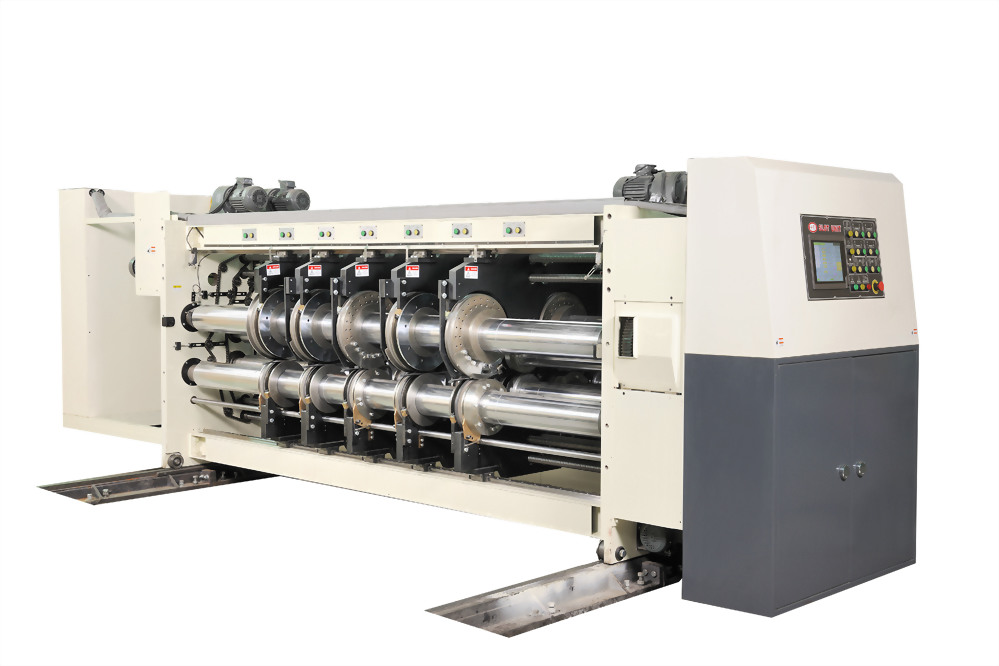

     Slotter Unit :

  • Adopting single shaft design for slotting knife.
  •  Slotting knife base lateral movement by ballscrew and linear guideway for smoothly moved.
  •  Crease bearing bed and slotting knife bearing bed simultaneously co-adjusted for keeping
         cutting accuracy and avoiding slotting knife worn
    away.
  •  The distance adjustment of slotting knife base motorized by auto positioning equipped with
         the scale on a ruler, also by manual micro-tuning.
  •  Auto adjustment with display for the gap control of the bottom slotting wheel shaft and bottom
         pre-creasing wheel shaft and bottom creasing
    wheel shaft.
  •  5 units of moveable slotter knives that allow full open and close options.

Optional : Dual slotter unit

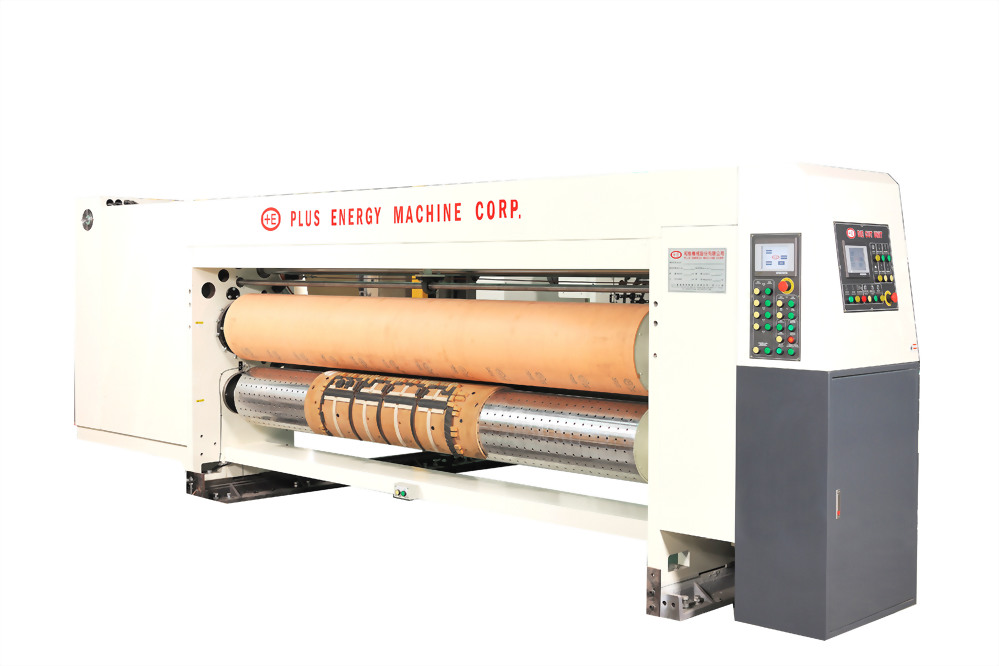

    Die Cutter Unit :

  • The auto gap control of cutting mould will prolonging the life spend of the die cut anvil.
  •  The anvil roll is design with side notion movement to enable different depression area on the anvil.
  •  Auto-searching die cutter position with auto-zero function.
  •  Speed compensation device system allow operator’s to adjust the speed ratio between anvil and
         die mould cylinders.

Optional : Fix Device server system of Die Cutter Unit, Use server system to transmission,
                          can not transmission with other gear. It can to lower
the vibrate and superimposed image
                          of printer when to die cut.

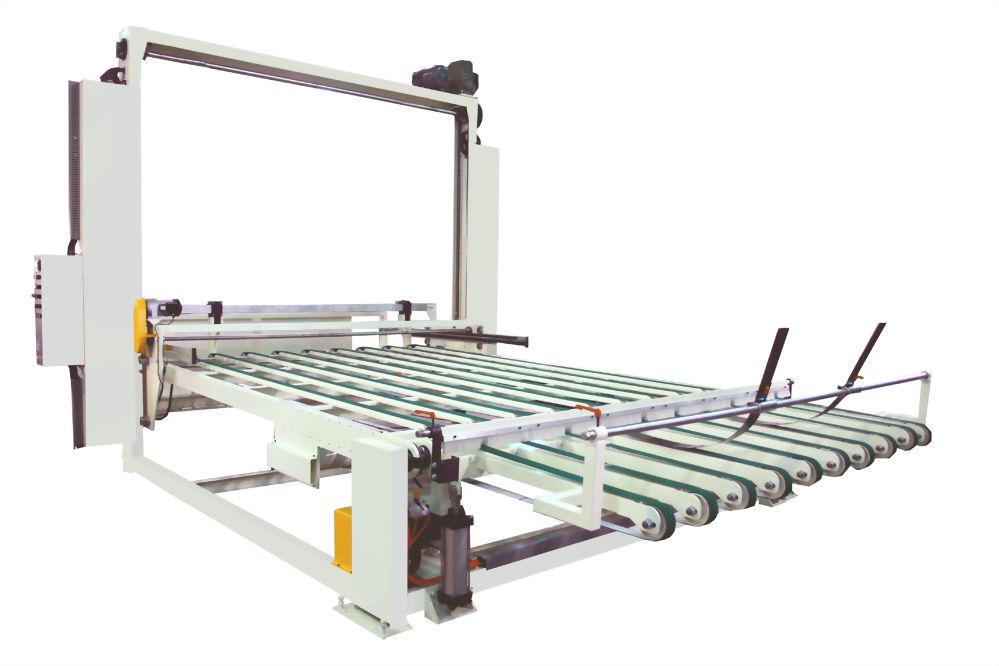

Stacker :

  • The stacker conveyor belt speed is complete with 2 option

               1) Link-up (interface) with FLEXO speed.

               2) Independent speed adjustment cording operator’s requirement.

  •  Equipped with prevent fall safety design prevents outrigger dropping.
  •  Stacker end would be complete with “Hydraulic Neat Stack” devise for finish carton.




用紙尺寸及機械規格

Cardboard Size and Specification
